A Chip Resistor has the ability to limit the flow of direct current (DC) and alternating current (AC). This property is used to lower the voltage or keep the current constant in an electronic circuit. Resistance basically follows Ohm's law, which uses a material with high electrical conductivity and a material with low conductivity together to achieve the required resistance value.
Chip Resistor's main resistor materials are Ag, Pd, RuO₂, CuNi, etc., which are used to manufacture general resistors, array resistors, ultra-low resistors, sulfur-resistant products, high-power products, environment-friendly products, etc.

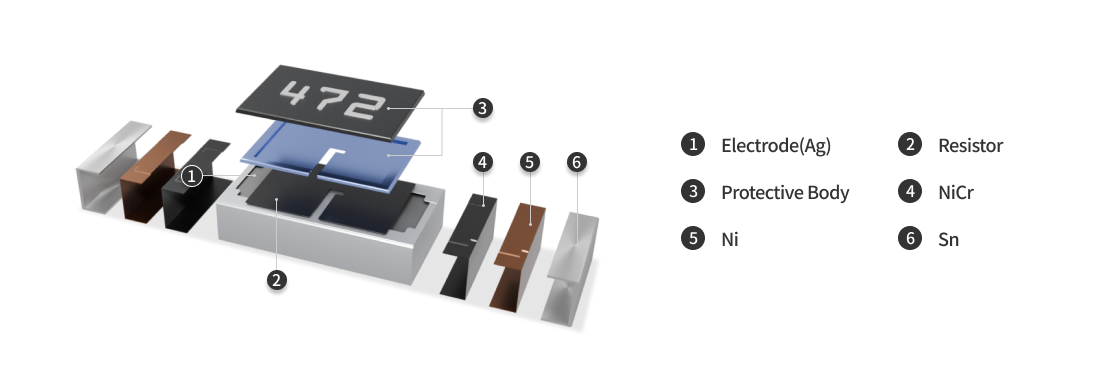

Resistor Capable of Precision Resistance
The product regulates current and drops voltage in an electric circuit through the properties that interrupt the flow of current.
It realizes the precision resistance required in the circuit in the form of an SMD-capable chip by printing resistors, electrodes,
and protective materials on a ceramic body.

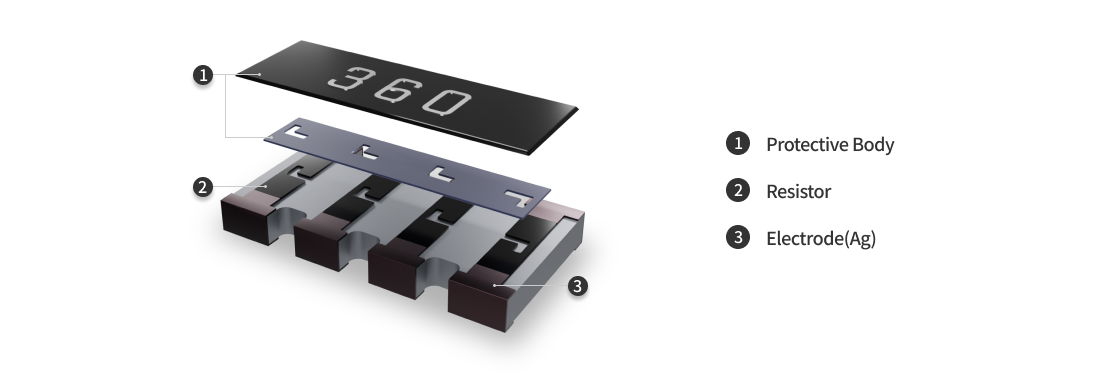

Resistor that Reduces Mounting Space
Array resistors are increasingly being used because they can reduce mounting time and cost by reducing the number of mountings,
thereby improving SMT productivity. Used primarily by semiconductor companies, array resistors are recognized for
their quality and performance.

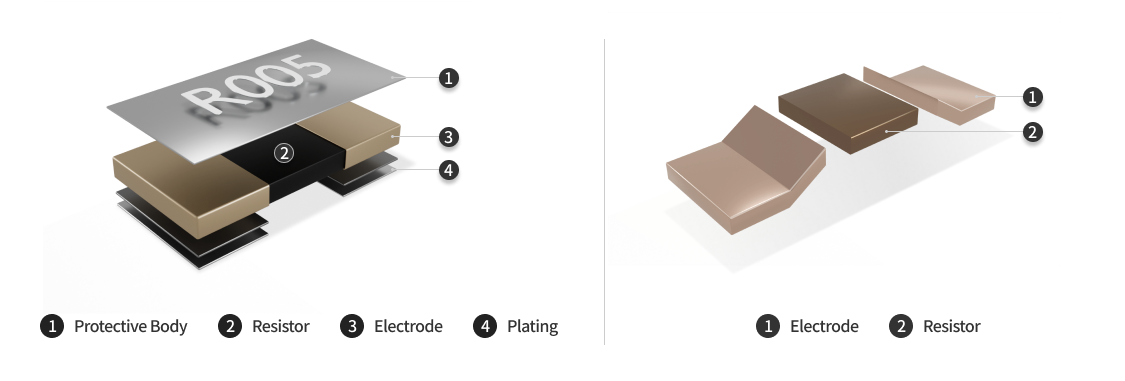

Ultra-Low Resistance Resistor for Current Sensing
An ultra-low resistance product manufactured with a thick film method that is used for current sensing.
It has an inverted mounting structure in which the resistor is located on the bottom to reduce resistance error.
The product shows high rated power and low temperature change characteristics.

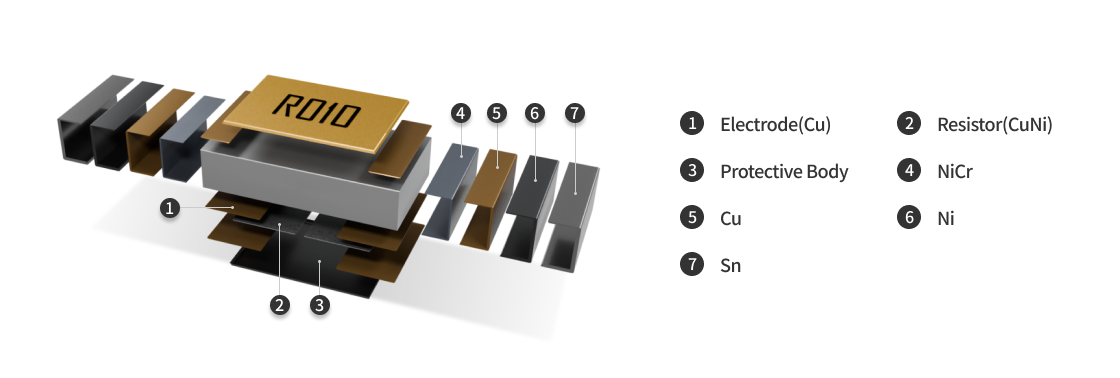

Ultra-Low Resistance Resistor for Current Sensing
An ultra-low resistance product used for current sensing as a key element for power management.
It adopts an electrode structure to reduce resistance error.
It is a high-current metal-plate type shunt resistor with high rated power and low temperature change characteristics.

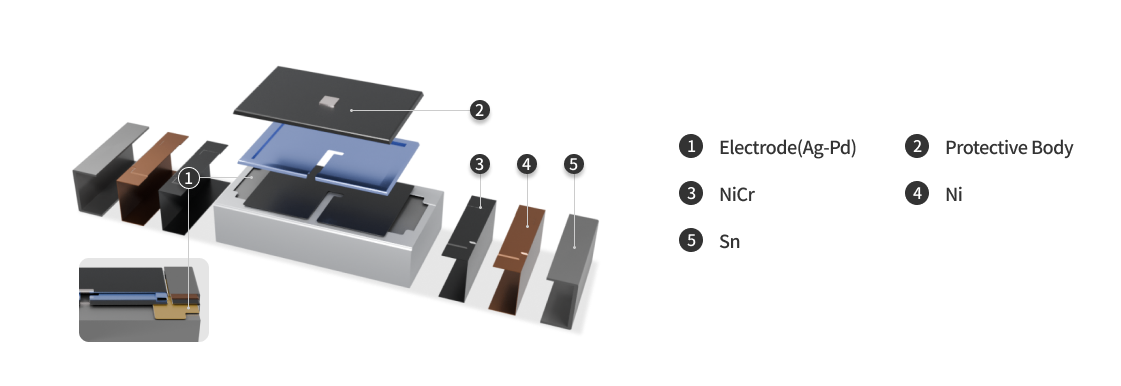

Resistor with Sulfur Resistance Properties
A chip resistor mainly uses silver (Ag) as its electrode material, but silver is easily corroded by sulfur (S) and gradually turns into silver sulfide (Ag₂S). Silver sulfide is an insulator and prevents current flow between both terminals of a resistor.
Therefore, it is essential for electronic devices used in harsh environments to use resistors with electrode materials that have sulfur resistance. Samsung Electro-Mechanics has developed materials that are resistant to sulfur corrosion with its unique materials and design technology and supplies chip resistors with sulfur-resistant properties.

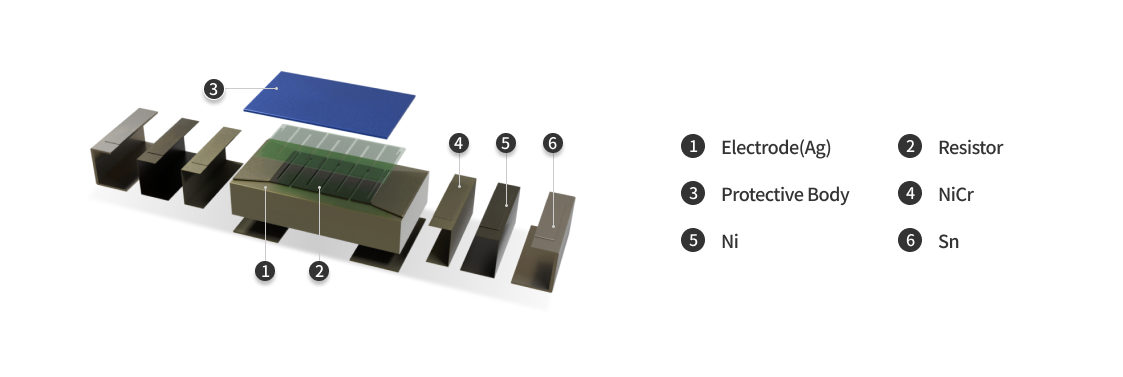

Resistor with High Power Capability
This product has a higher power capability than general products, with approximately three times the power characteristics.
Samsung Electro-Mechanics uses a proprietary technology to maximize the area of the resistor to achieve higher characteristics
than those of competitors.

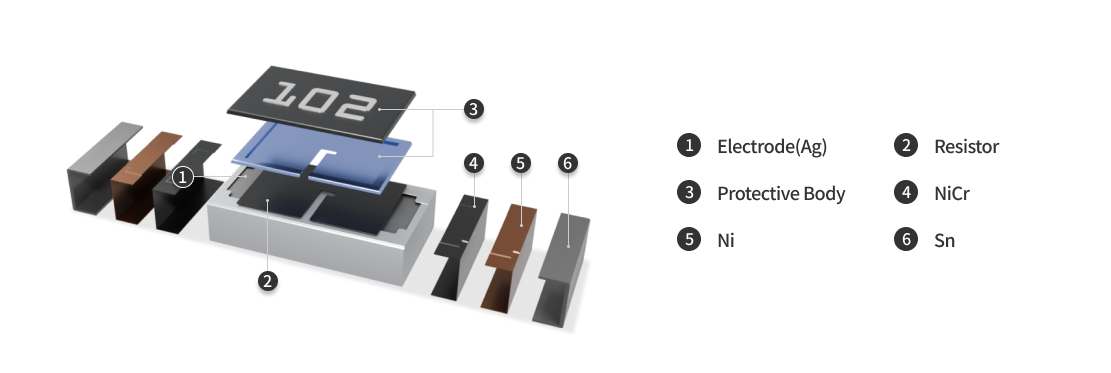

Environmentally Friendly Resistor
General products contain conductive particles in the resistor and Pb in the glass.
We produce totally Pb-free chip resistors that meet RoHS standards for both raw materials and chips.
Pb-free resistors are environmentally friendly products that are equivalent to general products in all characteristics, including electrical characteristics.

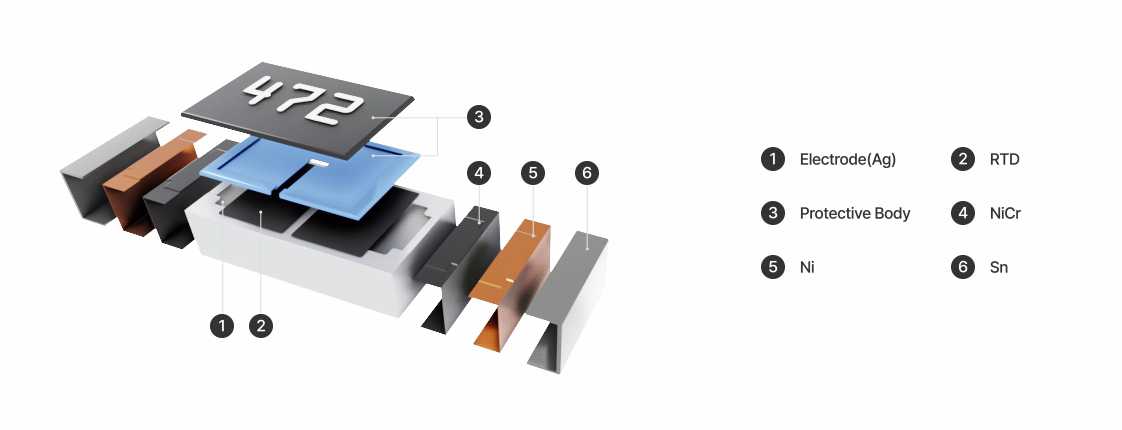

Resistor Realized with Thin Metal
Compared with general products, this is a high-precision product in which the structure of the resistor is made of thin metal
for high-precision characteristics. It has ultra-precise resistance deviation and highly accurate temperature change characteristics.
Resistor for Automotive Use
A family of products that guarantees AEC-Q200 reliability for use in various automotive electrical devices and ECUs.
